MJI-Hook 2000 Forklift Hook Beam
3D animation of the fork mounting, clamping and lifting with the MJI-Hook 2000. Narration and subtitles in Portuguese.
Drag to rotate · scroll or pinch to zoom
MJI-Hook 2000 Forklift Hook Beam

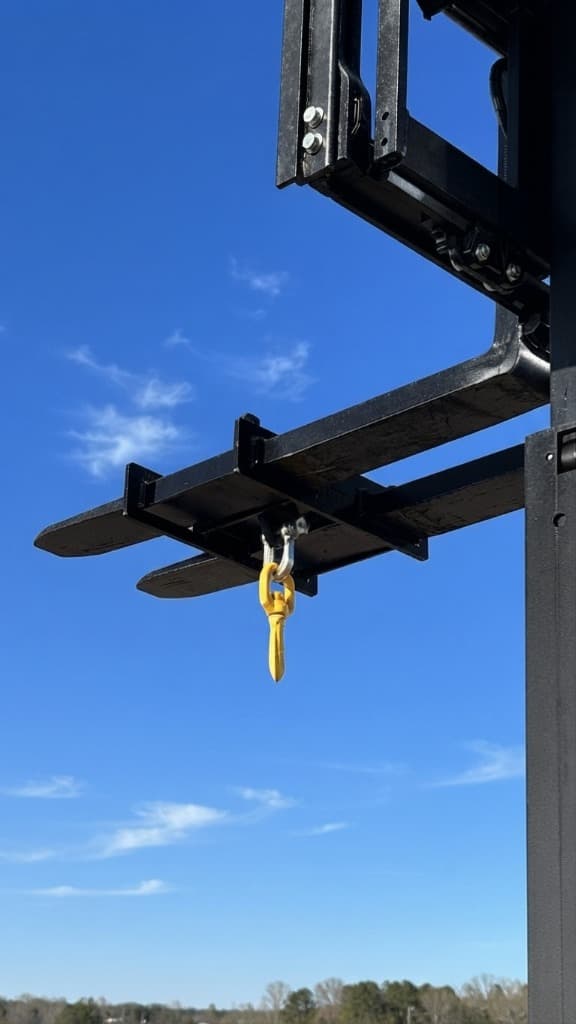

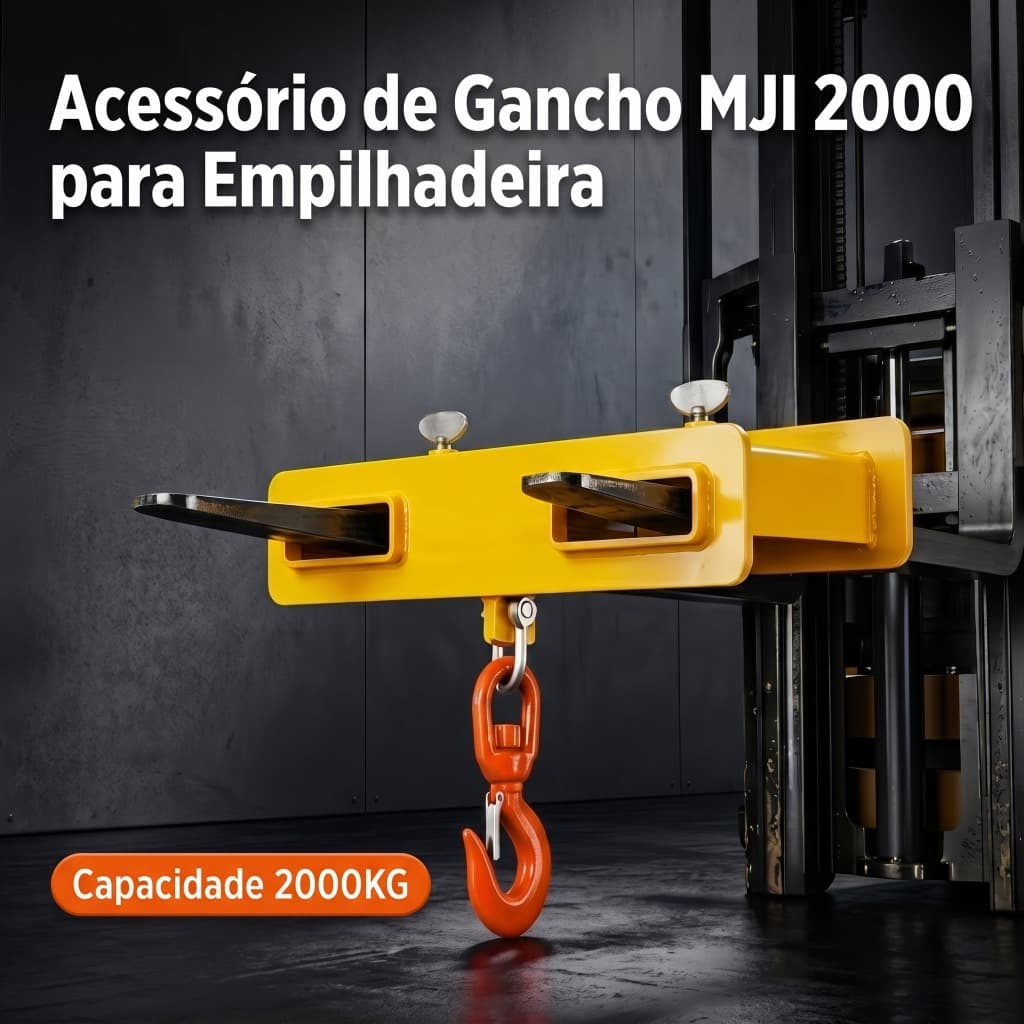

The MJI-Hook 2000 instantly converts your forklift into a compact, safe mobile crane. Built with high-strength structural steel beams, it locks securely over both forks via two top T-handle mechanical clamps and a safety chain, allowing you to lift machinery, steel slings, chains, and textile lifting straps up to 2,000 kg.
Main Technical Features
| Model | MJI-Hook 2000 |
| Working Load Limit (WLL) | 2,000 kg (2 Tons) |
| Fork Fit | Universal twin-fork with top clamp |
| Pocket Opening | 180 x 69 mm |
| Shackle Hole | Ø 26 mm |
| Safety Factor | 4:1 |
| Standards Complied | NR-11 and NR-12 |
| Warranty | 12 months |
Lifting steel structures, pipes, and heavy boilermaking items
Moving concrete blocks and precast elements
Loading and unloading sheets, coils, and bundles using lifting straps
Industrial machinery and pump maintenance and installation
What is the lifting capacity and safety factor of the MJI-Hook 2000?
The MJI-Hook 2000 features a Working Load Limit (WLL) of 2,000 kg (2 Metric Tons) with a structural safety design factor of 4:1. Manufactured from heavy-duty structural steel with certified continuous welding for rigorous industrial duty.
Why does the MJI-Hook use a dual-fork pocket design instead of a single fork?
The dual-fork configuration spans across both forklift forks simultaneously, balancing the suspended load directly along the machine centerline. This eliminates lateral torsional stress on individual forks and maximizes dynamic stability while traveling.
What fork dimensions fit the hook pockets?
The fork pockets measure 180 x 69 mm with dual top threaded T-handle clamping screws, fitting standard forks on 1.5 to 3.5-ton forklifts (Class II and Class III carriages).
Are any tools required for installation or removal?
None. Installation is 100% tool-free and takes under 60 seconds: slide the fork pockets onto your forks, hand-tighten the dual top T-screws, and attach the safety retention chain to the mast carriage.
Does it meet safety regulations and include serial traceability?
Yes. Every hook is equipped with a permanent metallic rating plate specifying 2,000 kg WLL, unique serial number, engineering compliance certification (NR-11 / OSHA), and a 12-month factory warranty.
