Forklift Fork Extensions (Pair)

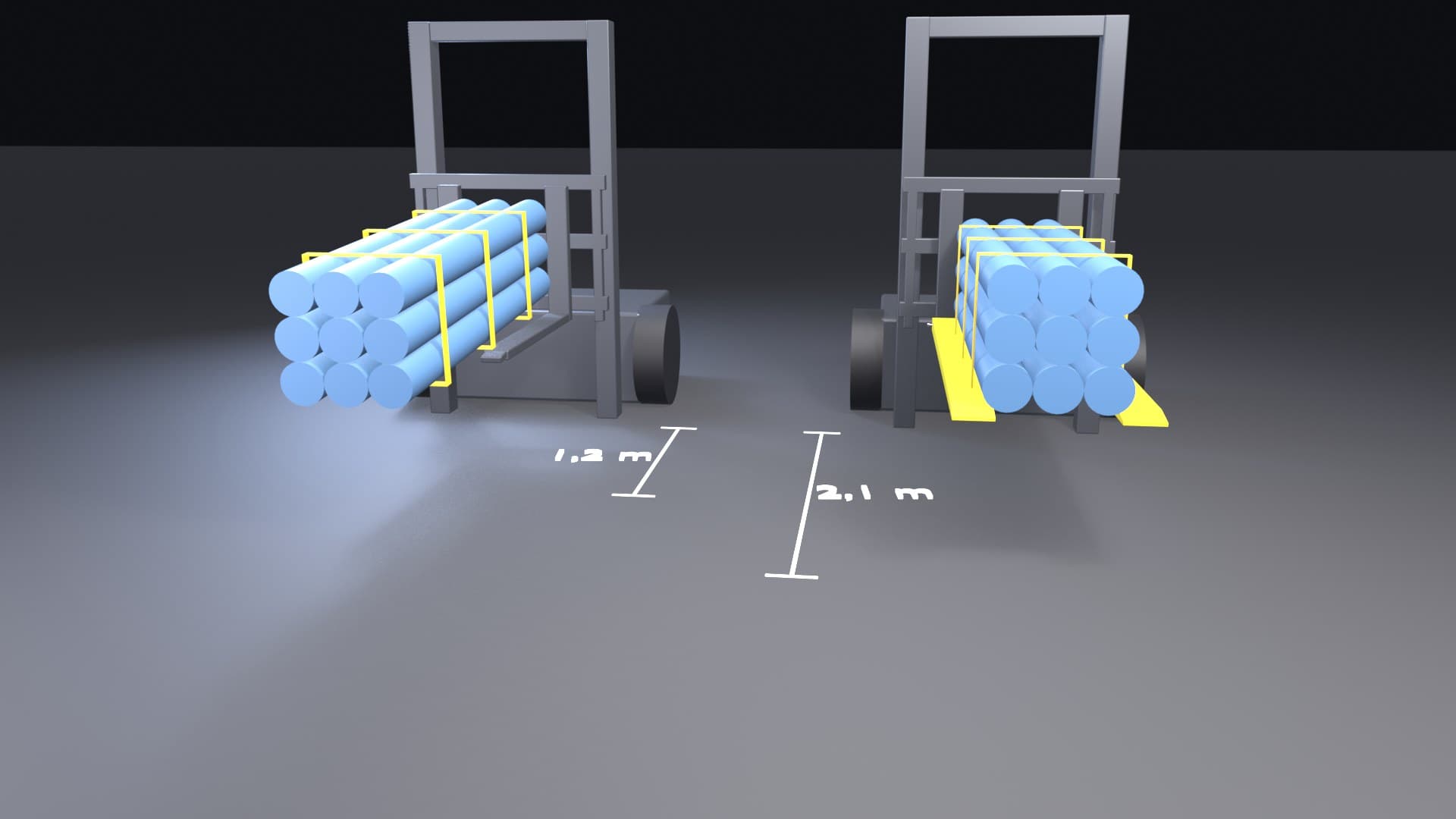

Standard fork on the left, extended fork on the right. Turn the load on and drag the control to slide the extensions on and watch the load stop hanging.
Forklift Fork Extensions (Pair)

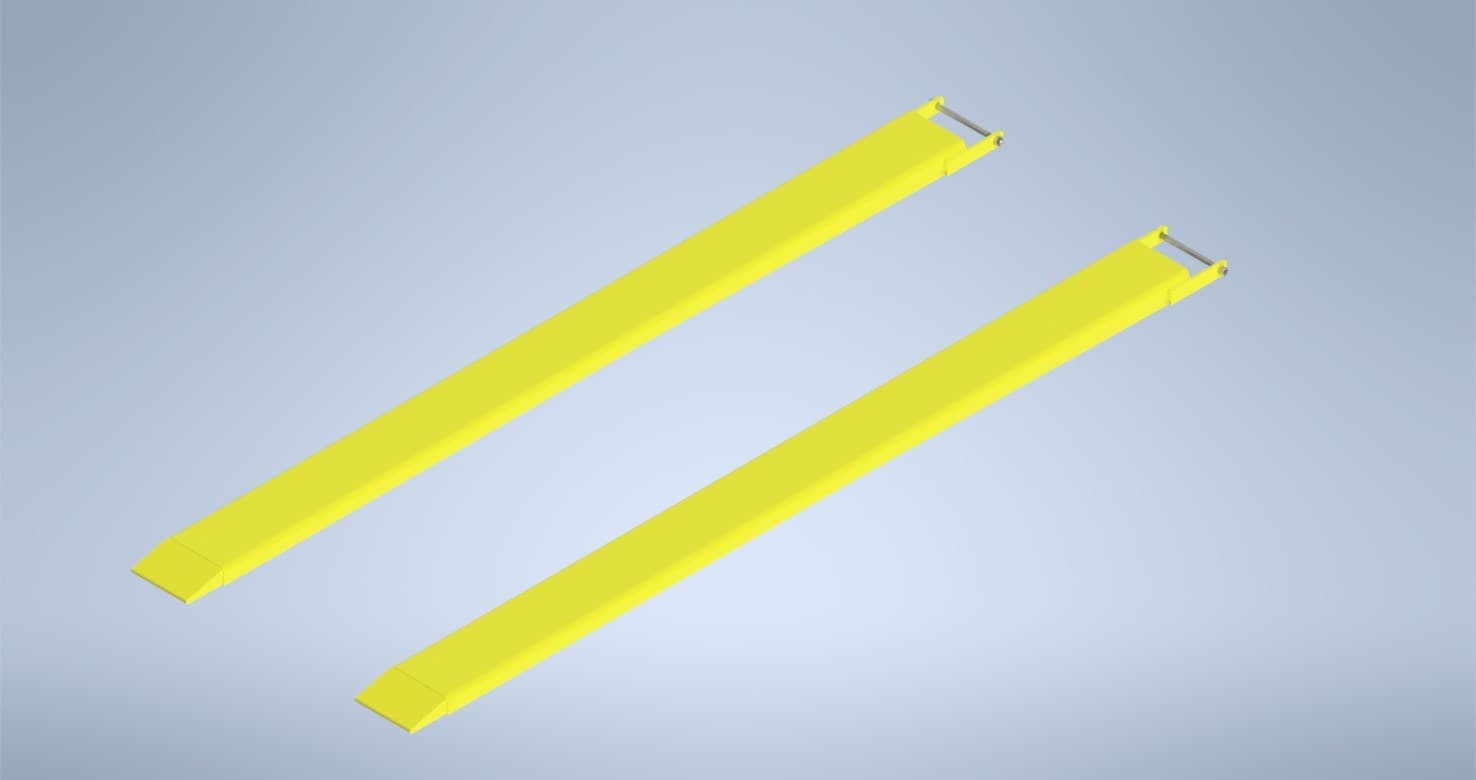

The Fork Extensions stretch your forklift forks to up to 2.1 meters in minutes, letting you safely carry long and deep loads such as pipes, profiles, bars, coils, bales, rolls and long pallets. Supplied as a pair, each extension slides over a fork and is secured by a pin at the entry mouth, with no welding or drilling on the fork. The welded box section, with a chamfered tip only 35 mm high, slides easily under the load and spreads the support along the entire length, so the load never hangs over the fork tip.
Main Technical Features
| Supply | Pair (2 pieces) |
| Length | 2,100 mm |
| Outer Section | 154 x 66 mm |
| Entry Inner Opening | 130 x 55 mm |
| Tip Height | 35 mm |
| Top Plate | 6.35 or 4.96 mm |
| Bottom Plate | 4.96 or 3.18 mm |
| Fastening | Locking pin at the entry mouth |
| Load Capacity | On request |
| Finish | Yellow industrial paint |
| Warranty | 12 months |
Handling long pipes, profiles, bars and rebar
Large-depth pallets and crates
Coils, fabric, paper, rubber and carpet rolls
Long bales, sheets and fabricated steel parts
Warehouses and plants that only need longer forks part of the time
How long are the Fork Extensions and how are they supplied?
Each extension is 2,100 mm long, with a 154 x 66 mm outer section and a chamfered tip 35 mm high. They are supplied as a pair, one for each forklift fork.
How is the extension fastened to the fork?
It slides over the fork through the 130 x 55 mm inner opening and is locked by a pin at the entry mouth. There is no welding or drilling on the fork, and fitting and removal are manual.
What is the load capacity of the extension?
Capacity depends on the fork, the forklift and the load center distance. Tell us your machine model and the load you plan to move to get the right recommendation.
When should I use the extension?
Whenever the load is longer or deeper than the fork, such as pipes, profiles, coils, bales and long pallets. With the extension the load is supported along its whole length instead of hanging over the fork tip.
